Foldable Purse Hanger for Table | Custom Metal Hook Factory
Description :
  • Gravity-locked lever architecture with 30 lbs static load capacity. Engineered around an eccentric pivot geometry that transforms downward handbag deadweight into inward clamping torque. The more load applied to the lower cradle, the tighter the base pad grips table surfaces, safely suspending tote bags up to 30 lbs (15 kg) without tip-offs.
  • High-toughness Zamak 5 folding links with N50 magnetic closure. Die-cast from high-ductility Zamak 5 zinc alloy (260 N/mm² shear strength) pinned with Φ1.8 mm solid SUS304 stainless steel rivets. The articulated chain glides open to fit 20 mm to 60 mm desk lips, and wraps into a 45 mm disc held flush by an internal N50 neodymium magnet.
  • High-friction non-slip silicone base with zero table abrasion. An integrated 0.8 mm recessed pad molded from high-damping food-grade silicone (Shore A 55°, friction coefficient μ ≥ 0.65) bonded with 3M VHB industrial adhesive. Anchors securely on polished marble, lacquered timber, and tempered glass without leaving micro-scratches or adhesive residue.
Base Architecture Articulated 4-link folding chain + round emblem disc with embedded N50 magnet
Structural Material High-pressure die-cast Zamak 5 zinc alloy + Φ1.8 mm solid SUS304 rivet pins
Table Anti-Slip Surface Recessed 0.8 mm high-damping silicone pad (Shore A 55°, μ ≥ 0.65, 3M VHB bonded)
Load-Bearing Benchmark Rated static capacity: 30 lbs (15 kg); structural safety factor SF ≥ 3.0
Tabletop Clearance Range Vertical drop clearance 65 mm to 85 mm; accommodates 20 mm to 60 mm table aprons
Production Turnaround 2D/3D layout: 2-4 working hours | Tooling & sample: 5-7 working days | Mass run: 10-15 working days

Submit your brand crest, corporate emblem, or vector layout (.AI, .EPS, .PDF or .SVG) for a factory-direct quotation and a production-grade 3D mechanical layout proof within 2 to 4 working hours.

Chat Now Message Email
Product Description:

详情 01

详情 02 (1)

详情 03

Product Specifications & Custom Craftsmanship Overview

Specification & Benchmark Gold Valley Direct-Factory Standard
Base Disc Diameter & Profile Φ45.0 mm outer diameter, 7.5 mm folded profile thickness Explore Custom Metal Bag Hangers
Structural Alloy Metallurgy High-ductility Zamak 5 zinc alloy (ASTM B240 / EN 1774, shear strength ≥ 260 N/mm²)
Articulated Hinge Pinned Assembly Φ1.8 mm solid austenitic SUS304 stainless steel pins with micro-flanged mechanical orbital rivets
Anti-Slip Contact Interface Molded high-damping silicone rubber pad (Shore A 55°, μ ≥ 0.65, bonded via 3M VHB acrylic film)
Magnetic Retention Mechanism Grade N50 sintered neodymium-iron-boron (NdFeB) disc magnet embedded within perimeter casing
Vertical Opening & Hook Clearance 65 mm to 85 mm vertical throat depth; 32 mm wide cradled lower hook with rounded R1.0 mm edges
Static Load & Tensile Rating 15 kg (30 lbs) sustained static test load (24h test with 0.00 mm permanent plastic deformation)
Emblem Embellishment Options Hand-buffed imitation hard enamel, 3D bas-relief die casting, natural mother-of-pearl, or fine leather inlay
Decorative Electroplating & Sealing Bright 24K gold rack plating, specular chrome, satin antique silver, or abrasion-resistant black rhodium
Global Chemical Safety Standards California Proposition 65 compliant (total lead < 90 ppm, total cadmium < 100 ppm, 8P phthalates zero-detected); EU REACH Annex XVII Entry 27 nickel release < 0.2 μg/cm²/week (EN 1811:2023)

Articulated Folding Link Hanger or Rigid C-Shape Desk Hook?

Selecting between an articulated folding chain hanger and a rigid one-piece C-hook depends on portability demands, gifting presentation, and desk apron clearance. Both handle heavy bags, but they solve different logistical workflows.

• Articulated Folding Chain Hanger (Pocket Vanity Portability)

Best for: Upscale dining banquets, corporate women’s networking events, luxury boutique merchandise, wedding guest gifts, and executive handbag care kits where ultra-compact carry is paramount.

  • Folded Envelope & Magnet Snap: Collapses into a sleek 45 mm jewel-like disc with an internal N50 magnet holding links flush. Slips effortlessly into evening clutches or cosmetic bags without snagging delicate linings.
  • Universal Edge Articulation: The segmented chain flexes around beveled, bullnose, or chamfered table edges, aligning downward gravity vectors directly perpendicular to the anti-slip silicone contact disc.
  • Jewelry Presentation Value: Smooth circular face functions as a luxury canvas for imitation hard enamel or custom logo medallions, delivering 4x higher perceived retail gift value over industrial work hooks.

• Rigid One-Piece C-Shape Hook (Fixed Commercial Station)

Best for: Fixed co-working desk benches, library study cubicles, coffee shop service bars, and industrial work stations where hangers stay anchored indefinitely.

  • Single-Piece Solid Rigidity: Formed from a single solid alloy casting or stamped steel bar without internal articulation joints, maximizing raw tensile rigidity under continuous day-long backpack hanging.
  • Instant Drop-and-Hang Service: Operates with zero unfolding motions; patrons set the top arm across the table and drop straps immediately onto the exposed bottom prong.
  • Fixed Envelope Geometry: The non-collapsible C-profile occupies larger volume in purses and cannot fold flat into evening clutches. To review permanent desktop attachment solutions, explore our Explore Custom Metal Keychains & Carabiners.
💡 Practical Craft Selection Tip: 💡 Factory Sourcing Rule of Thumb: For VIP hospitality gifts, cosmetic brand promotions, and luxury event swag, select articulated folding hangers that pack flat into handbag pockets. For fixed workspace furniture or high-traffic bistro counters, rigid C-hooks provide durable permanent stations.

Mechanical Engineering & Structural Stability Architecture

A reliable table bag hanger must carry heavy leather goods without bending pins, damaging tabletops, or tumbling during sudden bumps. We build mechanical stability into every joint, pivot, and contact surface.

Gravity-Locked Lever Dynamics

Inward torque equilibrium

As a handbag hangs from the lower hook, downward gravitational pull generates an inward rotational moment around the table pivot edge. This biomechanical lever presses the silicone base pad firmly against the tabletop—the heavier the purse, the tighter the grip.

Zamak 5 High-Toughness Links

260 N/mm² shear resistance

Each interlocking chain segment is pressure cast from Zamak 5 zinc-aluminum alloy rather than brittle commercial Zamak 3. Higher copper chemistry provides 260 N/mm² shear strength, eliminating link eyelet snapping under dynamic dropping shocks.

SUS304 Solid Micro-Riveted Pins

Zero-slop joint articulation

Link articulation pivots around Φ1.8 mm solid austenitic SUS304 stainless steel pins. Ends are mechanically orbital-spun with micro-flanges to guarantee zero joint slop through 3,000 continuous folding cycles while resisting ambient rust.

Recessed Silicone Base Chamber

Zero-scratch tabletop grip

The underside features an engineered 0.8 mm perimeter recess where a high-friction food-grade silicone disc (Shore A 55°) is mechanically flush-mounted. Grips polished marble, glass, and varnished wood without edge peeling or surface scuffs.

Internal N50 Magnetic Retention

Self-centering closed lock

A rare-earth N50 sintered neodymium magnet is press-fitted into the lateral receiver groove. Upon folding the link chain around the perimeter, the magnetic attraction draws the terminal link into a snug, rattle-free locked disc.

Wide-Arc Leather Friendly Cradle

Pressure distribution profile

The terminal hook broadens into a 32 mm contoured saddle with fully radiused R1.0 mm edges. Distributes strap weight evenly to prevent creasing or bruising expensive lambskin handles on designer handbags.

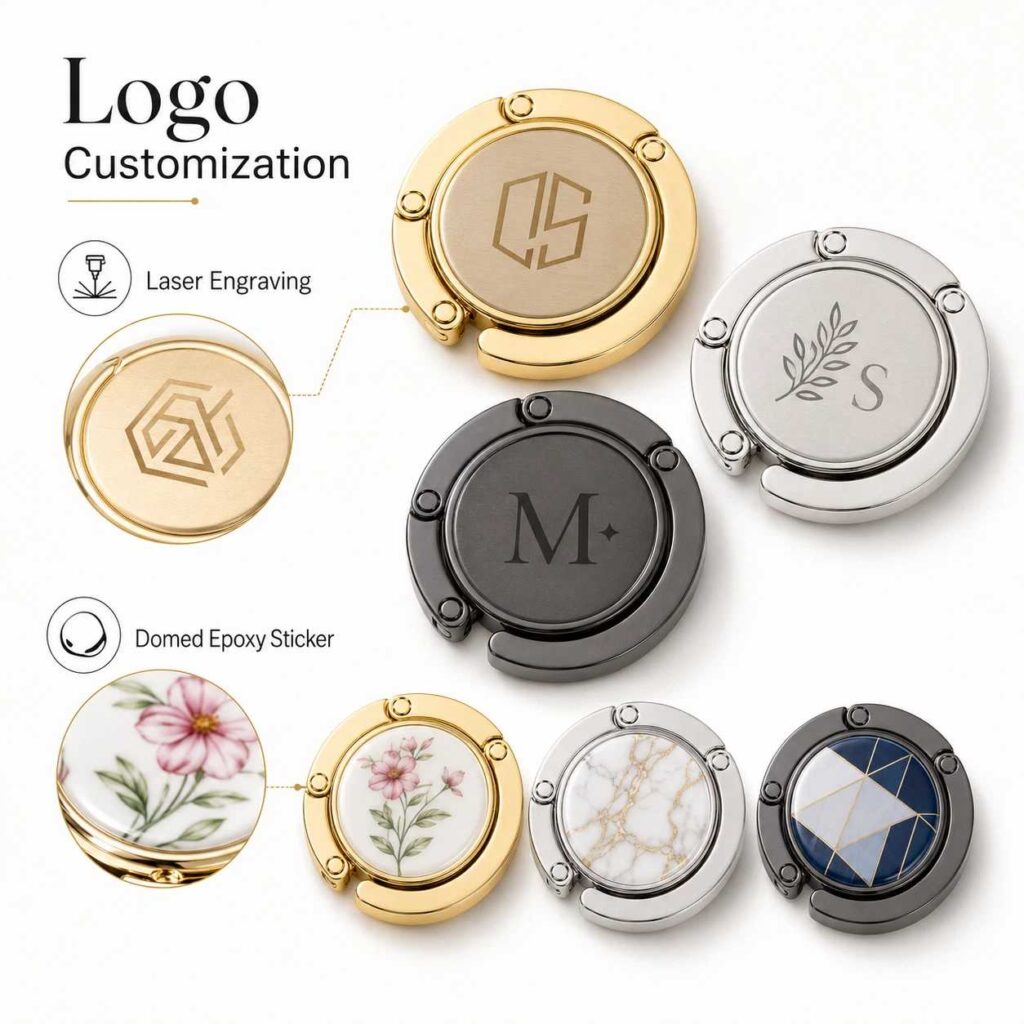

Surface Electroplating & Decorative Emblem Finishes

The top medallion serves as the decorative focal point. We execute jewelry-grade plating and emblem techniques that resist handbag friction, makeup stains, and everyday keys contact.

Process / Effect Technical Formulation & Appearance Best Applications
Specular 24K Gold & Mirror Chrome Plating Multi-stage electrolytic plating including cyanide copper strike, acid leveling copper, bright nickel, and 24K flash gold or mirror chrome. Buffed to specular jewelry brilliance and protected by a hard acrylic clear seal. Luxury retail fashion brands, high-end bridal sets, corporate executive recognition
Hand-Polished Imitation Hard Enamel Color chambers are filled with resin-based paste pigment, baked at 160°C, and stone-buffed flush with metallic partition ribs. Creates a glass-smooth ceramic finish completely flat to touch that resists cosmetic stains. Corporate anniversary branding, hotel concierge gifts, museum collection replicas
Natural Mother-of-Pearl & Abalone Inlay Genuine marine shell blanks precisely waterjet-cut and hand-set into the recessed bezel under crystal-clear UV jeweler resin. Iridescent organic patterns catch natural lighting with shimmering luxury hues. Premium boutique merchandise, spa resorts, milestone celebration commemorative tokens
Satin Antique Bronze & Antique Pewter Chemically oxidized dark patina hand-relieved on felt wheels to highlight relief heights while leaving deep antique shadows in recessed contours. Masks accidental surface handling marks during restaurant use. Heritage wineries, equestrian clubs, vintage fashion labels, specialty craft retail collections

For comprehensive plating bath chemistry, micro-hardness ratings, and salt spray test procedures, review our Industrial Electroplating & Finishes Standard.

Bespoke Retail Presentation & Gift Packaging Options

From protective bulk distribution sleeves to luxury velvet-lined jewelry boxes, our packaging configurations enhance presentation value and streamline retail merchandising.

Clear OPP Poly Sleeve with Barcode Label (Included Default)
High-clarity polypropylene sleeve shielding plated surfaces and silicone base pads from transit scuffs. Serves as a zero-cost, space-efficient baseline for bulk distribution and automated packaging lines.		 Drawstring Velvet Pouch with Gold Stamping (Compact Vanity Upgrade)
Soft brushed velvet jewelry pouch with dual braided drawstrings and metallic hot-foil logo stamping. Protects the folded purse hook inside handbags while enhancing personal gifting appeal.		 Clear Window Presentation Tin Box (Boutique Retail Upgrade)
Seamless tinplate box with optical clear PVC display window and precision die-cut black EVA foam insert. Showcases the enamel logo disc on retail shelves while resisting postal transit compression.		 Rigid Clamshell Gift Box with Satin Pull Ribbon (VIP Executive Upgrade)
Heavy 1000g greyboard box wrapped in textured art paper, fitted with magnetic closure lid, custom-embossed foil crest, and high-density velour-flocked tray for corporate award presentations.


Tooling Engineering, Assembly & Mechanical Quality Verification

1. CNC Mold Tooling & Cavity EDM Tooling engineers machine H13 hardened steel multi-cavity dies on high-speed CNC milling centers, sinking intricate logo contours with mirror-grade EDM electrodes down to ±0.03 mm precision.
2. Automated Hot-Chamber Die Casting Multi-axis die casting machinery injects molten Zamak 5 alloy under 180-ton clamping force, filling thin-wall folding link geometries with uniform density and zero porosity.
3. Vibratory Deburring & Jewelry Hand Buffing Castings undergo ceramic media tumbling to remove flash, followed by multi-stage cloth wheel buffing to polish all link pivot edges and circular bezels to mirror reflectance.
4. Rack Electroplating & Acrylic Protective Bake Components are individually mounted on titanium racks through copper, nickel, and decorative gold/chrome baths, followed by an automated electrostatic spray of clear acrylic baking lacquer (8-12 μm, 3H).
5. Orbital Rivet Pin Assembly & Magnet Press-Fit Skilled assemblers join link segments using Φ1.8 mm SUS304 pins on orbital riveting presses, calibrate joint articulation friction, and press-fit rare-earth N50 magnets into perimeter housings.
6. Static Load Testing & Optical Inspection Random sample units from each production lot undergo 15 kg (30 lbs) sustained static tension testing, 3,000 folding hinge cycles, and 100% cosmetic visual inspection before cleanroom packaging.

Factory Assurance: Tooling precision, mechanical joint shear strength, and anti-slip friction ratings are supervised by Senior Production Engineer Lin Jianhua (Gold Valley Dongguan Works). Our manufacturing facility operates under certified ISO 9001:2015 quality protocols, annual Sedex SMETA 4-Pillar compliance audits, and verified conformity to California Proposition 65 and EU REACH Annex XVII nickel release limits.

[RFQ] Sourcing Spec Sheet (Copy-Paste for Your RFQ)

Paste the parameter table below straight into your request for quotation, or forward directly to our Direct Engineering Desk for an itemized factory quotation within 2 to 4 working hours:

• Base Structure: Articulated 4-link folding chain + circular medallion disc with lateral N50 magnetic closure
• Alloy Metallurgy: High-pressure die-cast Zamak 5 zinc alloy (ASTM B240 / EN 1774, shear strength ≥ 260 N/mm²)
• Hinge Pins & Assembly: Φ1.8 mm solid austenitic SUS304 stainless steel pins with micro-flanged orbital mechanical rivets
• Anti-Slip Base Interface: 0.8 mm recessed food-grade silicone pad (Shore A 55°, friction μ ≥ 0.65, 3M VHB bonded)
• Static Hanging Capacity: Rated working load: 30 lbs (15 kg) continuous static suspension without joint elongation (SF ≥ 3.0)
• Table Edge Clearance: Vertical drop clearance 65 mm to 85 mm; accommodates table thicknesses from 20 mm to 60 mm
• Decorative Finishes: 24K gold rack plating, bright chrome, satin nickel, antique bronze, black rhodium; baked clear coat (3H)
• Chemical Safety Compliance: California Proposition 65 (Pb < 90 ppm, Cd < 100 ppm, 8P phthalates non-detectable); EU REACH EN 1811:2023
(Engineered to Gold Valley Factory Tolerances — Dongguan Facility)

Custom Foldable Purse Hangers: Ordering & Engineering FAQ

Will this folding purse hanger slip off smooth restaurant tabletops like glass or polished marble?

A: No. Slipping occurs when low-cost consumer hangers use smooth foam stickers or slick plastic backing. Gold Valley engineers each hanger with a 0.8 mm recessed bed fitted with a high-damping food-grade silicone pad (Shore A 55°, friction coefficient μ ≥ 0.65) bonded with 3M VHB adhesive. Furthermore, our gravity-locked lever geometry positions the bag strap directly inward relative to the table edge, meaning downward weight actually intensifies downward clamping force against the tabletop.

Can the articulated links support heavy work bags with laptops, or will the rivet pins shear off?

A: We engineer these hangers for real-world loads up to 30 lbs (15 kg) with a safety factor SF ≥ 3.0. Rather than using weak Zamak 3 castings and hollow iron eyelet tubes, we cast links from high-toughness Zamak 5 alloy (260 N/mm² shear strength) and secure every joint with Φ1.8 mm solid austenitic SUS304 stainless steel rivet pins. In laboratory hang tests, assemblies sustain 15 kg for 24 hours with zero pin shear or joint elongation.

What is your tooling mold fee policy, and how long are custom dies preserved?

A: Custom steel production tooling is cataloged in our temperature-controlled factory mold vault for 2 full years free of charge. Tooling retention automatically extends for another 2 years upon every subsequent order. When ordering replenishment runs for annual merchandise or seasonal client campaigns, your reorder mold fee is $0.00.

What file formats do you accept, and how quickly can we review 3D layout proofs?

A: We accept vector files in .AI, .EPS, .PDF, or high-resolution layered .PSD formats. If your team only has preliminary brand sketches, photographic references, or graphic concept renders, our engineering drafting department will generate a production-ready 3D mechanical layout proof within 2 to 4 working hours at zero charge. Submit your artwork through our Direct Engineering RFQ Desk.

What are your minimum order quantities, prototype turnaround, and production schedules?

A: Pilot manufacturing runs begin from 100 pieces per custom medallion design, allowing corporate gift clients and luxury brands to evaluate market response. Production economics scale at 300, 500, and 1,000+ units as mold amortization decreases unit costs. Custom tooling and physical evaluation prototypes take 5 to 7 working days; full mass manufacturing takes 10 to 15 working days. Expedited 72-hour turnaround is negotiable for fixed event dates.

What international chemical safety and ethical audit credentials govern this product?

A: Gold Valley operates an audited manufacturing plant in Dongguan conforming to ISO 9001:2015 quality procedures and annual Sedex SMETA 4-Pillar social accountability standards. Our finished purse hooks fully satisfy California Proposition 65 limits for total lead (< 90 ppm) and total cadmium (< 100 ppm), as well as EU REACH Regulation (EC) No 1907/2006 Annex XVII Entry 27 nickel release standards (< 0.2 μg/cm²/week under EN 1811:2023) ensuring hypoallergenic handling.
